SUS304 Rain Test Chamber For Solar Panels Wind Turbine Components Water Spray Resistance

Name: SUS304 Rain Test Chamber For Solar Panels Wind Turbine Components Water Spray Resistance
Brand: Neide
Price: 1 USD

Wholesale SUS304 Rain Test Chamber For Solar Panels Wind Turbine Components Water Spray Resistance from china suppliers

Brand Name : Neide

Model Number : ND-800

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 100sets/month

Delivery Time : 7-22 work days

Packaging Details : Wooden Box(standard export packaging)

Power : Electronic

Warranty : 1 Year

Flow Rate of The Weter : 0.07L/Min +5%

Speed of Spray Swing Pipe : IP3 15 /Min;IP4 10/Min

IP1/ 2 Dripping Hole : 0.4mm

Rain Pressure : Speed of Turntable Rpm

Speed of Turntable Rpm : 1~10 Adjustable

Material : SUS304 or customized

Drop Test : 0.1~1.5°C/Min

Temperature Rising Speed : Ipx3. Ipx4 Swing Pipe: Rt-+80°C

Brand : Neide

Customized : Welcome

Factory : Yes

Customer : More than 500+

After-sales service : Yes

Transportation : By Sea

Reply for probme : Within 24 hours

Contact Now

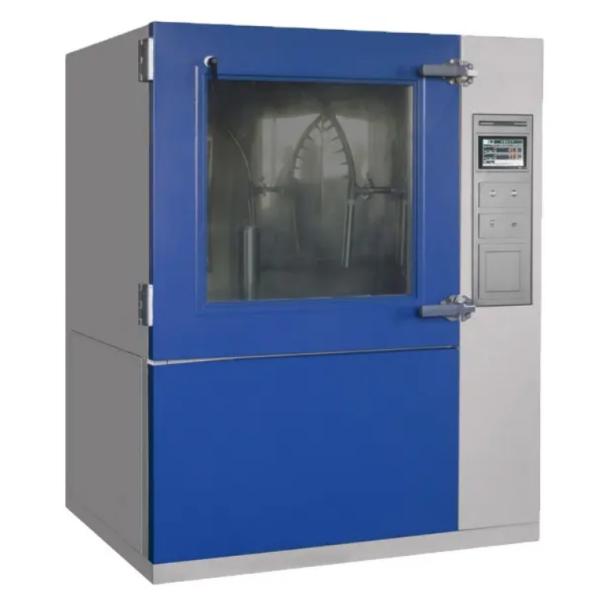

Rain Test Chambers Testing Water Spray Resistance Of Solar Panels And Wind Turbine Components

Product Description:

Precise Water Spray Simulation: These rain test chambers are engineered to precisely replicate real - world rainfall scenarios. They can control the water spray volume, spray angle, and rainfall intensity. For solar panels, which are typically installed at specific angles, the chamber can adjust the spray angle to accurately simulate the impact of rain on the panel surface. The water spray volume can be calibrated to match different rainfall rates, from light drizzles to heavy downpours.
Multiple Test Modes: They offer multiple test modes to meet different testing requirements. For wind turbine components, which have complex shapes and structures, a cyclic test mode can be used. This mode alternates between different rainfall intensities and durations, mimicking the changing weather conditions that wind turbines may encounter during their operation. Additionally, a long - term continuous test mode is available for solar panels to assess their long - term water resistance under extended exposure to simulated rain.


Major Specification:

Model

ND-501-800

ND-501-1000

Internal Dim.W×H×D(mm)

800×800×800

1000×1000×1000

External Dim.W×H×D(mm)

1250×1800×1100

1750×1850×1300

Water Temp.

Normal

Spray Type

Total Water

1.8

IP×1

With in 1~1.5mm/min(In drip box)

Flow

3.2

IP×2

With in 3~3.5mm/min(In drip box)

(L/min)

24.5

IP×3

angle±600,R:400mm,1.1L/min

39.2

IP×4

angle±1800,R:400mm,1.8L/min

Pressure of

0.1

1.Flow rate of the water=0.07L/min
